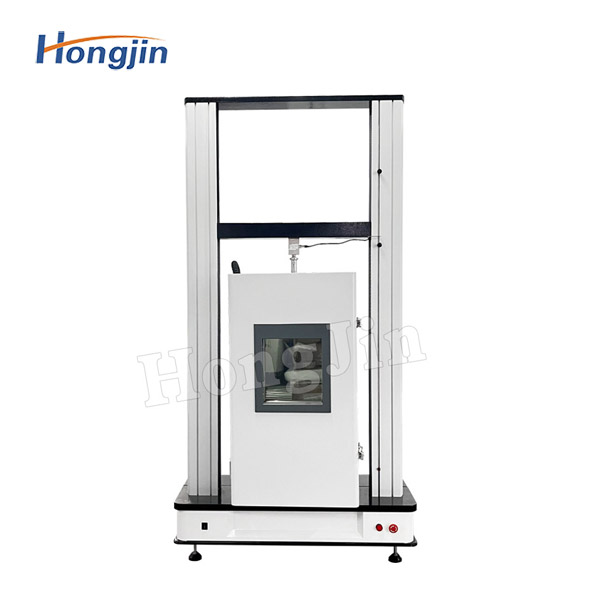

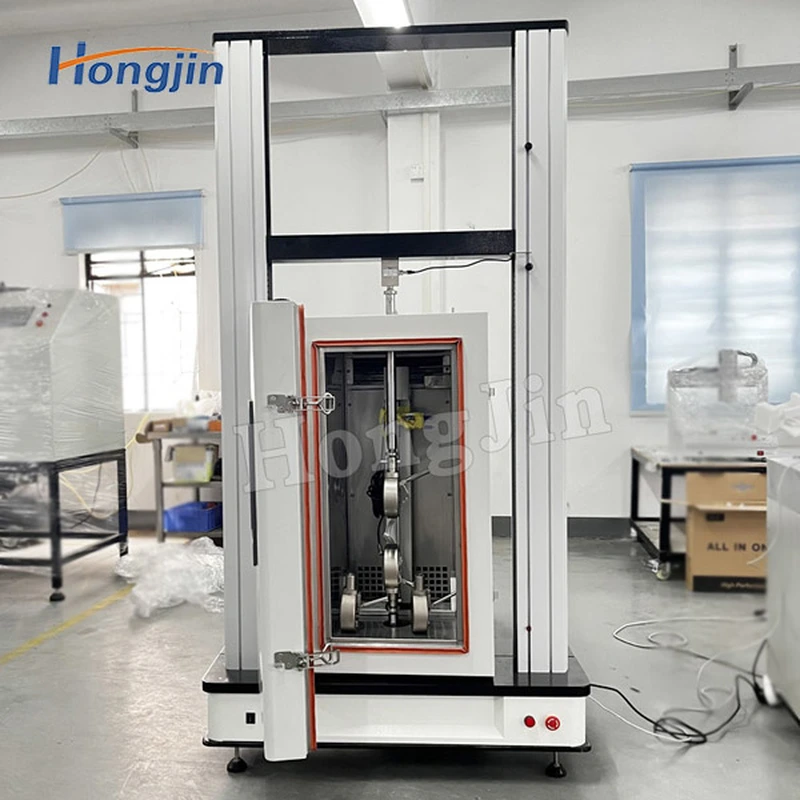

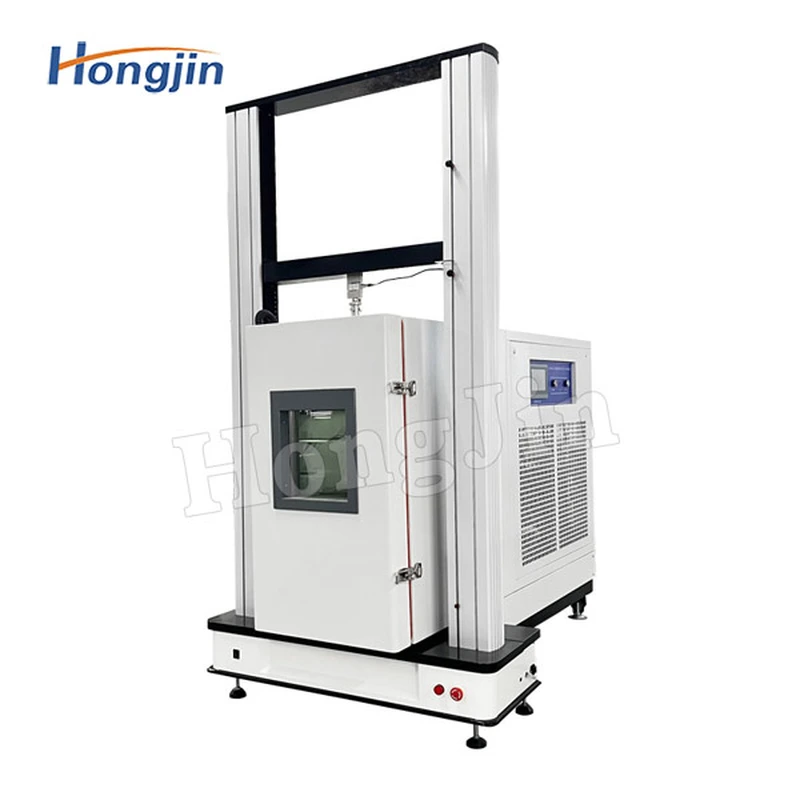

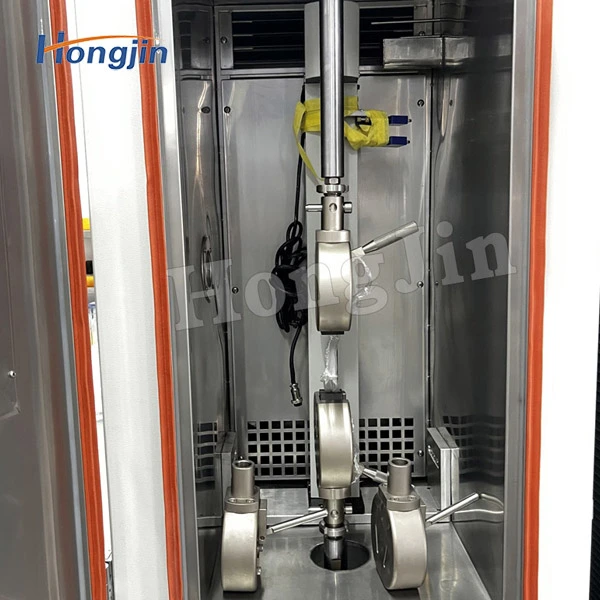

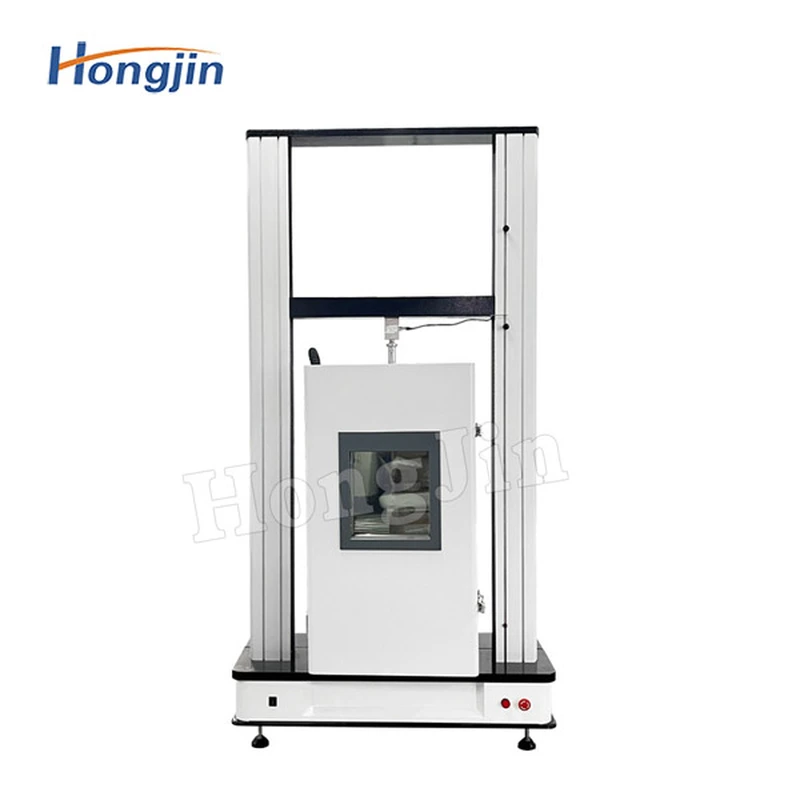

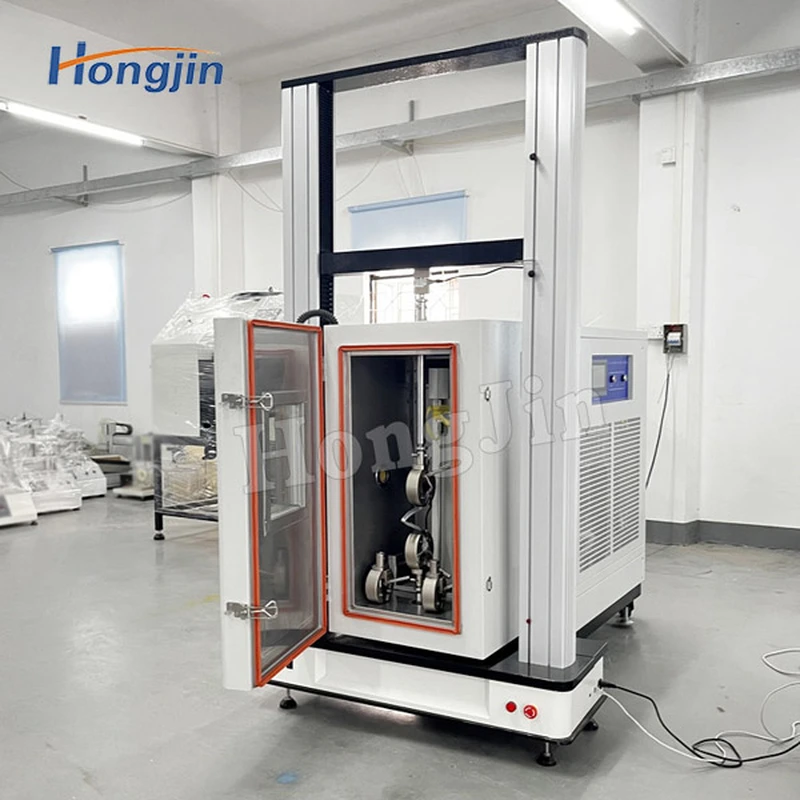

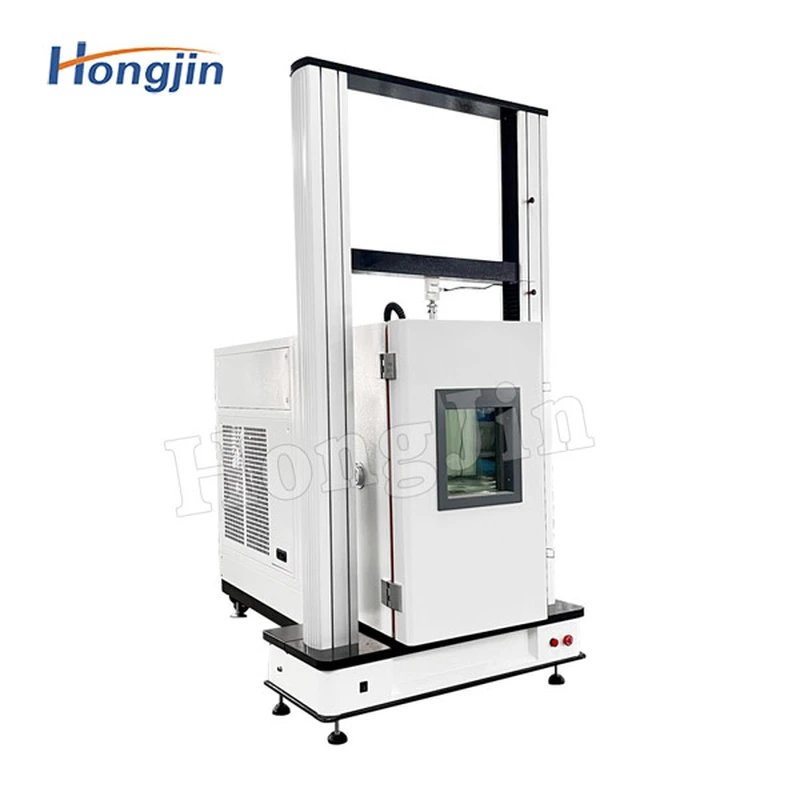

High and low temperature tensile machine

High and low temperature tensile machine

Product Description
The High And Low Temperature Tensile Testing Machine Can Automatically Calculate The Maximum Test Force Value, Breaking Force Value, Yield Strength, Upper And Lower Yield Strength, Tensile Strength, Compressive Strength, Fracture Elongation, Tensile Strength, Etc. According To Gb, Jis, Astm, Din, Iso And Other Standards. Test Data Such As Tensile Elastic Modulus And Bending Elastic Modulus. It Is Suitable For Tensile Testing Of Rubber, Plastics, Textiles, Waterproof Materials, Wires And Cables, Mesh Ropes, Metal Wires, Metal Rods, Metal Plates And Other Materials. Additional Accessories Can Be Added For Compression And Bending Tests.

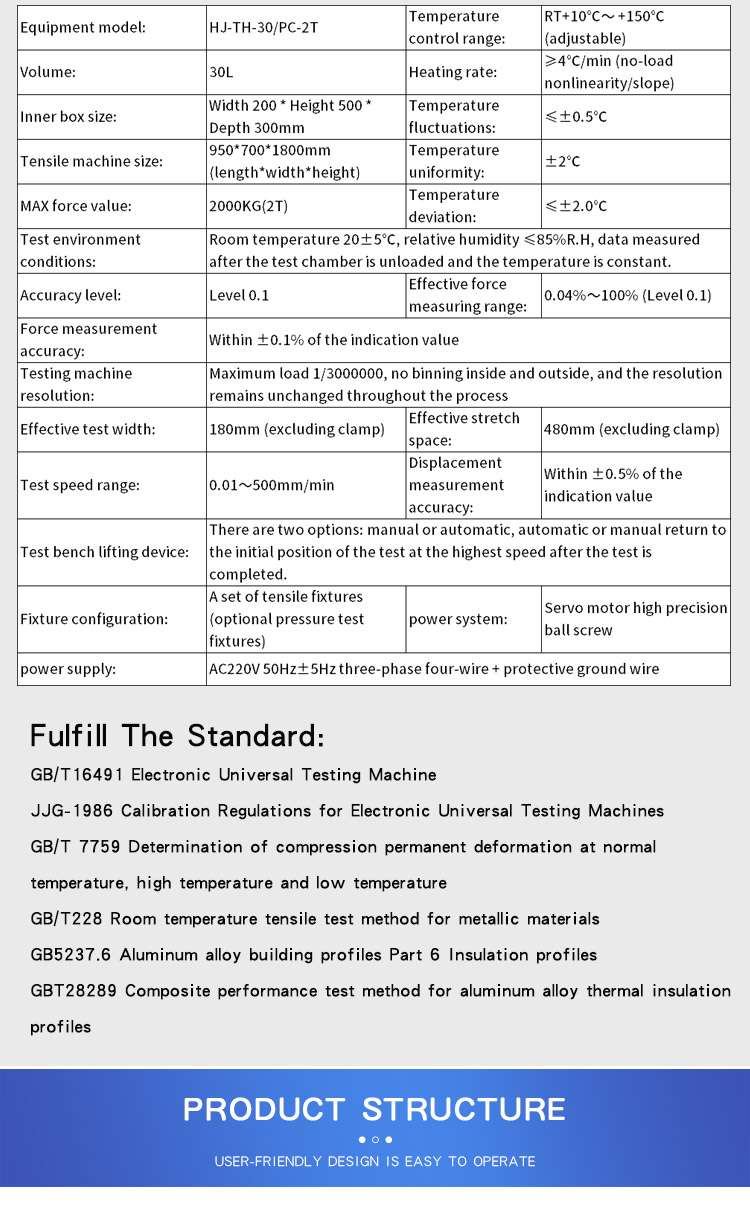

Description

Volume:	30L
Inner box size:	Width 200 * Height 500 * Depth 300mm
Tensile machine size:	9507001800mm (lengthwidthheight)
Maximum force value:	2000KG(2T)
power supply:	AC220V 50Hz±5Hz three-phase four-wire + protective ground wire
temperature control range	RT+10℃～ +150℃ (adjustable)
Heating rate	≥4℃/min (no-load nonlinearity/slope)
temperature fluctuations	≤±0.5℃
temperature uniformity	±2℃
temperature deviation	≤±2.0℃
Test environment conditions	Room temperature 20±5℃, relative humidity ≤85%R.H, data measured after the temperature is constant under no load in the test chamber

High and low temperature tensile machine
